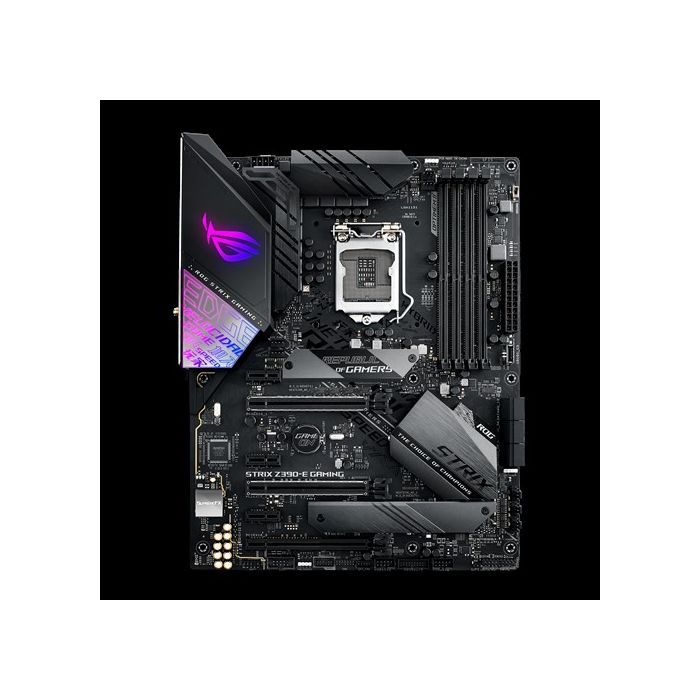

ASUS ROG STRIX Z390-E GAMING
|
CPU |
|
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
|
Supports Intel® 14 nm CPU |
|
Supports Intel® Turbo Boost Technology 2.0 |
|
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
|
Chipset |
|
Intel® Z390 |
|
Memory |
|
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
|
Dual Channel Memory Architecture |
|
Supports Intel® Extreme Memory Profile (XMP) |
|
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
|
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|
Graphic |
|
Integrated Graphics Processor- Intel® HD Graphics support |
|
Multi-VGA output support : HDMI/DisplayPort ports |
|
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz |
|
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 |
|
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
|
Multi-GPU Support |
|
Supports NVIDIA® 2-Way SLI™ Technology |
|
Supports AMD 3-Way CrossFireX™ Technology |
|
Expansion Slots |
|
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) |
|
1 x PCIe 3.0/2.0 x16 (max at x4 mode) |
|
3 x PCIe 3.0/2.0 x1 |
|
Storage |
|
Intel® Z390 Chipset : |
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2 |
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
|
6 x SATA 6Gb/s port(s) |
|
Support Raid 0, 1, 5, 10 |
|
Intel® Optane™ Memory Ready |
|
LAN |
|
Intel® I219V |
|
Anti-surge LANGuard |
|
ROG GameFirst Technology |
|
Wireless Data Network |
|
Intel® Wireless-AC 9560 |
|
Wi-Fi 802.11 a/b/g/n/ac |
|
Supports dual band frequency 2.4/5 GHz |
|
Supports MU-MIMO |
|
Bluetooth |
|
Bluetooth® 5.0 |
|
Audio |
|
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
|
- Dual OP Amplifiers |
|
- Impedance sense for front and rear headphone outputs |
|
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input |
|
- SupremeFX Shielding Technology |
|
- Supports up to 32-Bit/192kHz playback *2 |
|
Audio Feature : |
|
- SupremeFX Shielding™ Technology |
|
- Optical S/PDIF out port(s) at back panel |
|
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals |
|
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
|
- Sonic Radar III |
|
- Sonic Studio III + Sonic Studio Link |
|
USB Ports |
|
Intel® Z390 Chipset : |
|
1 x USB 3.1 Gen 2 front panel connector port(s) |
|
Intel® Z390 Chipset : |
|
4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM) |
|
Intel® Z390 Chipset : |
|
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) |
|
Intel® Z390 Chipset : |
|
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
|
ROG Exclusive Features |
|
ROG Exclusive Software |
|
- RAMCache III |
|
- CPU-Z |
|
- GameFirst V |
|
- Sonic Studio III + Sonic Studio Link |
|
- Sonic Radar III |
|
Special Features |
|
OC Design - ASUS PRO Clock Technology |
|
- Full BCLK range for extreme overclocking performance |
|
5-Way Optimization by Dual Intelligent Processors 5 |
|
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App |
|
AI Overclocking |
|
ASUS Optimem II： |
|
- Improved DDR4 Stability |
|
AURA : |
|
- Aura Lighting Control |
|
- Aura RGB Strip Headers |
|
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices |
|
- Aura Addressable Strip Header(s) |
|
ASUS Exclusive Features : |
|
- MemOK! II |
|
- AI Suite 3 |
|
- Ai Charger |
|
- Armoury Crate |
|
- Pre-mounted I/O Shield |
|
- ASUS NODE: hardware control interface |
|
ASUS EZ DIY : |
|
- ASUS CrashFree BIOS 3 |
|
- ASUS EZ Flash 3 |
|
ASUS Q-Design : |
|
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) |
|
- ASUS Q-Slot |
|
- ASUS Q-DIMM |
|
Gaming Aesthetics : |
|
- 3D printing friendly |
|
- AURA-RGB Lighting |
|
Digi+VRM |
|
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |
|
DIY Friendly Design |
|
- Procool |
|
- SafeSlot |
|
- Digi+ VRM |
|
- DRAM Overcurrent Protection |
|
- Highly Durable components |
|
- ESD Guards |
|
Back I/O Ports |
|
1 x DisplayPort |
|
1 x HDMI |
|
1 x LAN (RJ45) port(s) |
|
4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM) |
|
2 x USB 3.1 Gen 1 |
|
2 x USB 2.0 |
|
1 x Optical S/PDIF out |
|
5 x Audio jack(s) |
|
1 x ASUS Wi-Fi Module |
|
Internal I/O Ports |
|
1 x Aura Addressable Strip Header(s) |
|
1 x AAFP connector |
|
2 x Aura RGB Strip Header(s) |
|
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) |
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
|
6 x SATA 6Gb/s connector(s) |
|
1 x M.2_FAN connector |
|
1 x CPU Fan connector(s) |
|
1 x CPU OPT Fan connector(s) |
|
2 x Chassis Fan connector(s) |
|
1 x W_PUMP+ connector |
|
1 x 24-pin EATX Power connector(s) |
|
1 x 8-pin ATX 12V Power connector(s) |
|
1 x System panel(s) (Chassis intrusion header is inbuilt) |
|
1 x 5-pin EXT_FAN(Extension Fan) connector |
|
1 x MemOK! II switch(es) |
|
1 x Thermal sensor connector(s) |
|
1 x CPU OV |
|
1 x Clear CMOS jumper(s) |
|
1 x Node Connector(s) |
|
1 x 14-1 pin TPM connector |
|
1 x COM port header |
|
1 x AIO PUMP Header |
|
1 x USB 3.1 Gen 2 front panel connector |
|
Accessories |
|
User's manual |
|
4 x SATA 6Gb/s cable(s) |
|
1 x M.2 Screw Package |
|
1 x Supporting DVD |
|
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) |
|
1 x CABLE TIE BLACK |
|
1 x SLI HB BRIDGE(2-WAY-M) |
|
1 x ROG Strix stickers |
|
1 x Assistant Fans(40mm) |
|
1 x screws for Assistant Fan(s) |
|
1 x ROG Door Hanger(s) |
|
1 x Extension Cable for RGB strips (80 cm) |
|
1 x Extension cable for Addressable LED |
|
1 x Thermistor cable(s) |
|
BIOS |
|
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 |
|
Manageability |
|
WOL , PXE |
|
Operating System |
|
Windows® 10 64-bit |
|
Form Factor |
|
ATX Form Factor |
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
Note |
|
*1 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable. |
|
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
